Description

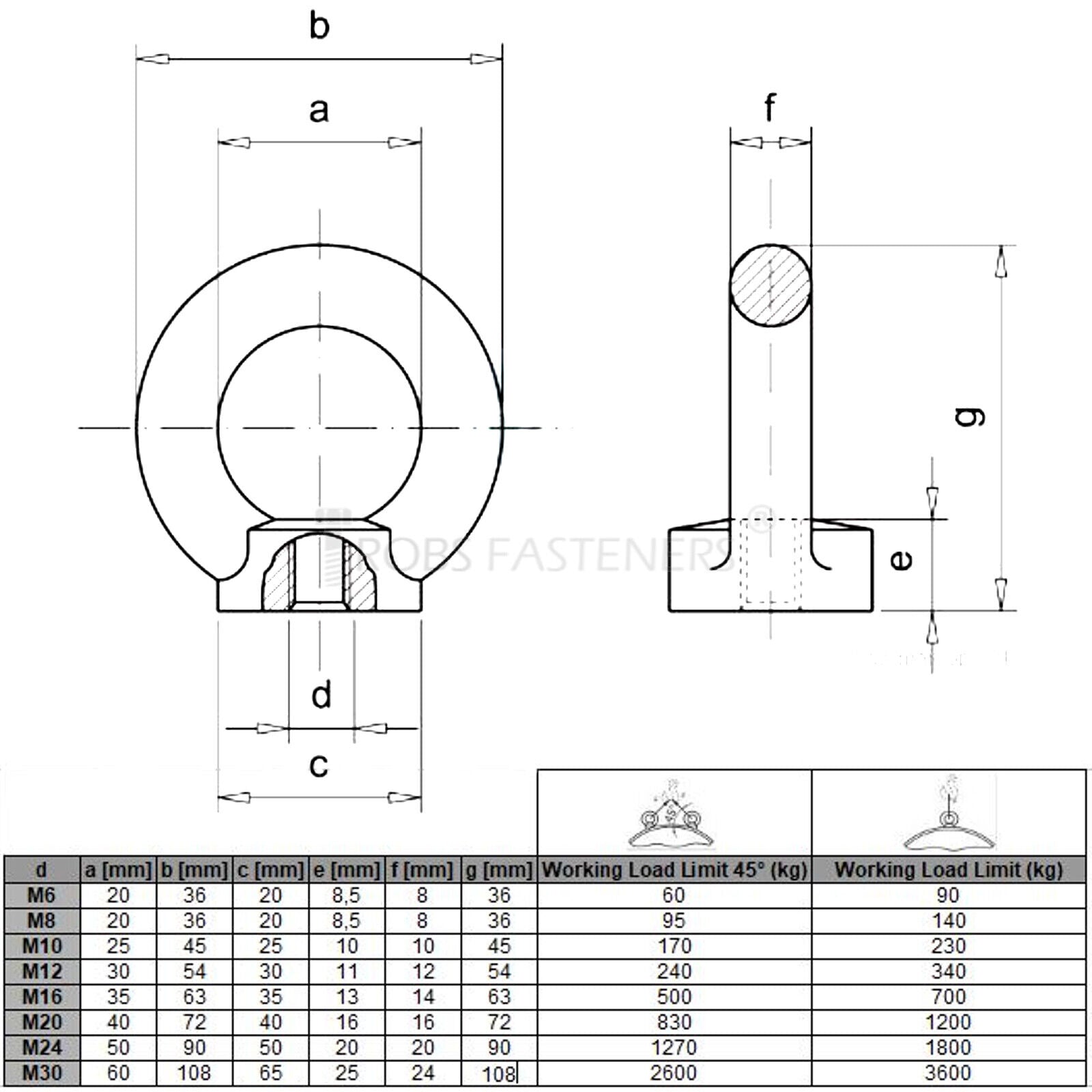

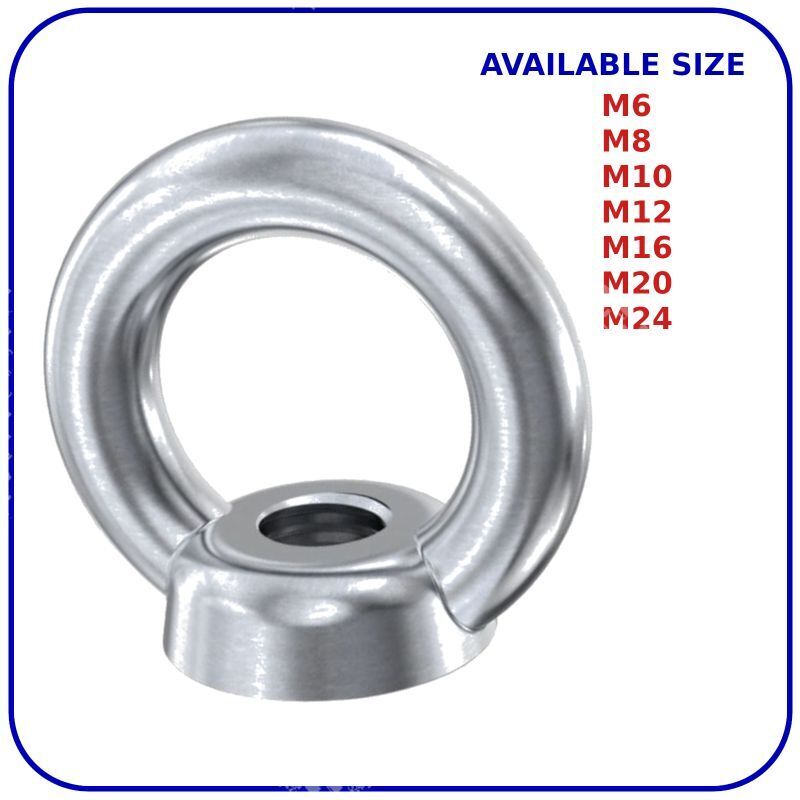

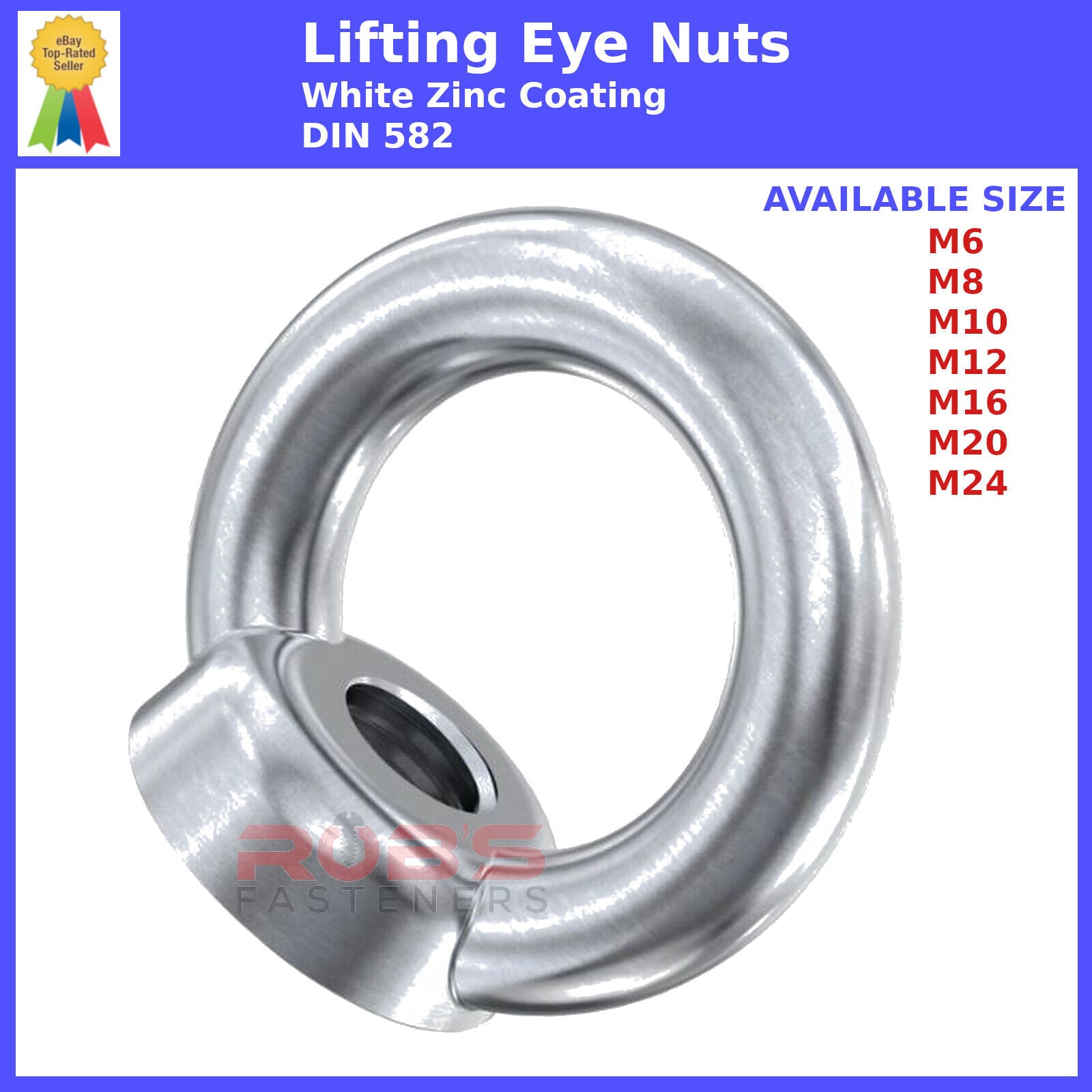

Lifting Eye Nuts
- Manufactured to DIN 582
- Zinc Plated
- Threads are the standard metric
M6
- Thread pitch - 1 mm
- Working Load Limit
- (WLL) = 70 kg
M8
- Thread pitch - 1.25 mm
- Working Load Limit
- (WLL) = 140 kg
M10
- Thread pitch - 1.5 mm
- Working Load Limit
- (WLL) = 230 kg
M12
- Thread pitch - 1.75 mm
- Working Load Limit
- (WLL) = 340 kg
M16
- Thread pitch - 2 mm
- Working Load Limit
- (WLL) = 700 kg
M20
- Thread pitch - 2.5 mm
- Working Load Limit
- (WLL) = 1200 kg

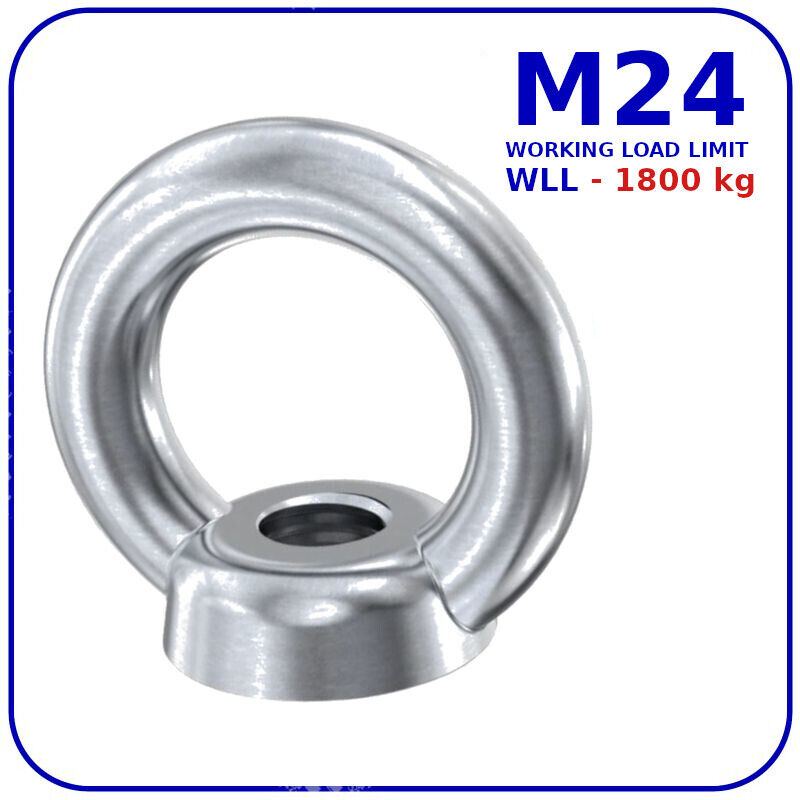

M24
- Thread pitch - 3 mm
- Working Load Limit
- (WLL) = 1800 kg
